SeeedStudio Qfp Surface Mount Protoboard 0.80Mm + 0.50Mm DIY Maker Open Source BOOOLE
[gallery columns="4" orderby="rand"]
Product Features
- 1)BOOOLE INC. researches and develops electronic products and open source hardware with the aim of promoting MAKER SPACE and DIY practice. It makes you believe innovation and invention are no more exclusive to scientific research institutes.
- 2)We are newcomer on Amazon,but we are seasoned on Open Source Hardware.
- 3)Please kindly give us a chance,you are ensured the best experience of buying from us.
- 4)Any issue please feel free to contact us by Amazon Message, BoooleTech(at)yahoo.com, or visit Booole.com for more information.
Product descriptions

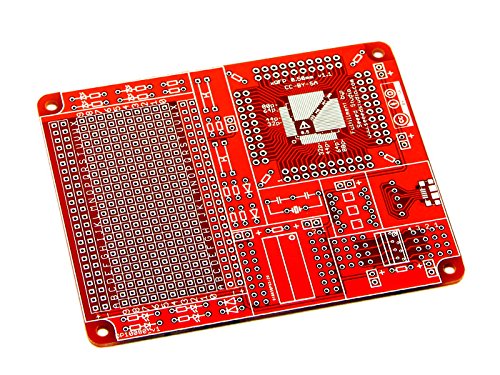

Description : A multi-purpose surface mount protoboard from Dangerous Prototypes. Great for getting started with a new microcontroller. It has footprints for:
32-80pin xQFP packages (TQFP, VQFP, LQFP, etc)
SOIC(W) chips from .150?? to .3?? (max 32 pins)
xSSOP chips (max 32 pins)
Button with pull-up resistor input area (2x)
LED with resistor output area (8x)
SMD or through hole crystal with capacitors
SOT-23-3/5/6 (3x)
0805 R and C (6x, plus extras near IC footprints)
DO-323 (4x)
24??10 pin through-hole prototype area
Power bus routed near all components
Silk labels on top and bottom
Open source (CC-BY-SA)
New:
Additional 0.50 mm pitch 32-80pin xQFP on bottom side
USB mini-B and micro-B, micro-B located on bottom side
Additional note:This board is the version 2 and succeeds the QFP surface mount protoboard - 0.80mm
